Aligning a round horizontal workpiece

These notes apply where a round workpiece is held horizontally. This could apply when using a vertical rotary table fitted with a chuck. Or when using a dividing head and the workpiece is held in a chuck with a dividing head. It does not work if the round piece is being held in a V-block

See  – dividing head – holding the workpiece

The assumptions are:

 that, if the milling table swivels, that  the milling table is “square”.

The cut has to be parallel to the axis of the workpiece

The workpiece must be parallel to the milling table. This can be done using a dti.

Setting the axis of the workpiece to be in the same plane as the axis if the vertical milling spindle.

One simple way of doing this is to fit a standard spigot in the milling chuck. Another spigot ot the same diameter is fitted in the chuck of the dividing head or rotary table.

If an Autolock type chuck is being used then the spigot must have the right thread on it. This can easily be made by taking a long series endmill and grinding the cutting parts off it. The other spigot could be a precision ground piece of rod. But the endmill will be very slightly narrower than the precision rod. A piece of rolled rod might be found to match the endmill better and this is what matters.

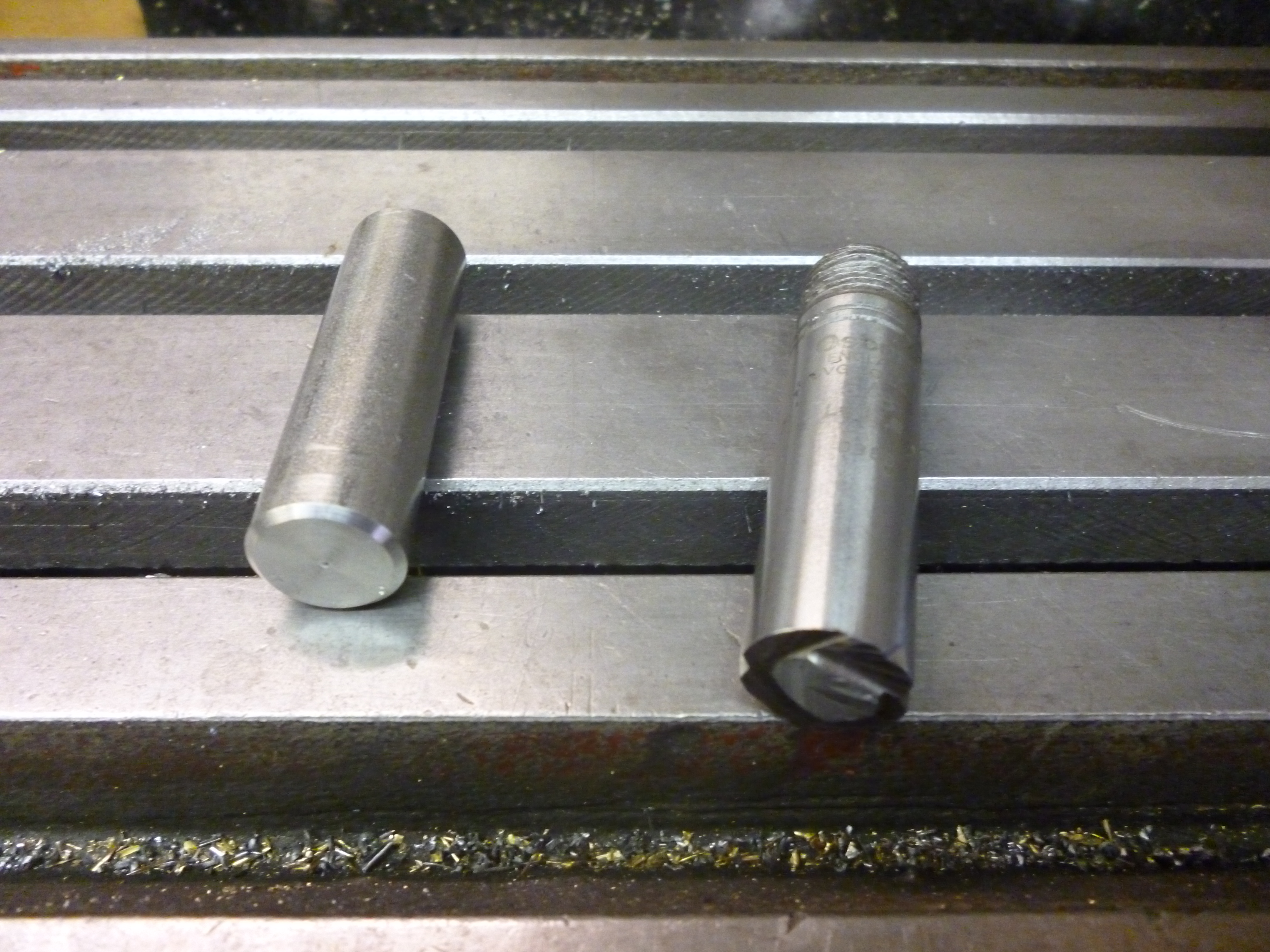

745 Spigots for aligning a round horizontal workpiece

745 Spigots for aligning a round horizontal workpiece

With the two spigot fitted to their chucks they are aligned using a square mounted on the milling table.

744 Aligning a dividing head using two spigots

744 Aligning a dividing head using two spigots

What is so good about this method is that it works whatever the diameter of the cutter that will be used or the diameter of the workpiece. So the two spigots are all that will ever be needed. Notice that no measuring or calculations are needed.
