Lathe – making very fine cuts

Usually, the cross-slide on a larger lathe will be graduated so one division will represent 0.02mm or 0.001 inches.

Of course a movement by either of these amounts will reduce the diameter of the workpiece by twice this amount..

On smaller lathes the graduated dial is that much smaller and a division might be 0.1mm or equivalent.

There are several ways of making smaller cuts.

In each case it has to be remembered that as a cut gets finer and finer it becomes very important that the cutting edge is really, really sharp.

In the following cases the cut is usually being made so as to reduce the diameter of a workpiece. After this it is shown how to use the same devices to reduce the length of a workpiece.

Reducing the diameter – The first method

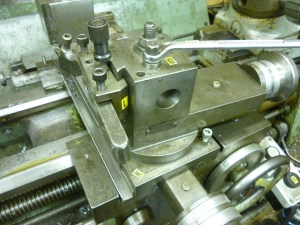

If the top slide is rotated through about 6 degrees away from the axis of the lathe then, as the handle is turned, the distance moved in the direction at right angles to the axis of the lathe is reduced to about one tenth of the reading on the graduated dial.

2023 fine cuts using topslide at angle

2023 fine cuts using topslide at angle

Notice that to move the cutter across the bed of the lathe the top slide is moved.

Reducing the diameter – The second method

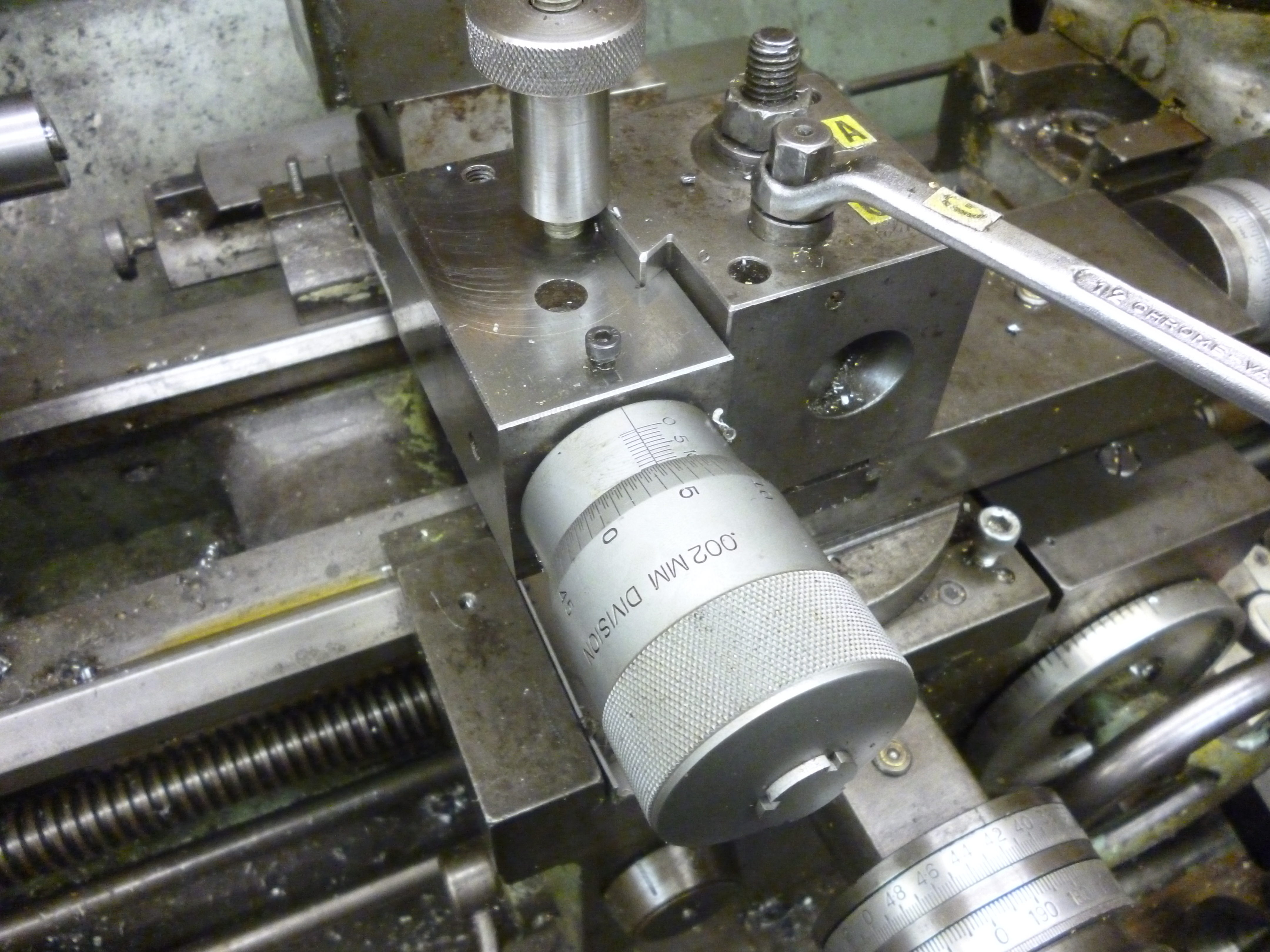

This uses a toolholder which uses a large micrometer head. One division on this head represents a movement of 0.002mm

2021 fine cuts using large micrometer head

2021 fine cuts using large micrometer head

In this case to move the cutter across the bed of the lathe the cross slide is moved.

Reducing the diameter – The third method

The third method is like the second but instead of a large micrometer head a differential micrometer had is used. One division on this represents a movement of 0.001mm.

2022 fine cuts using differential micrometer head

2022 fine cuts using differential micrometer head

Reducing a length

In general the same techniques can be used to shorten the length of a workpiece. What is happening is that the same techniques are used but the moment of the cutter is now along the length of the lathe rather than across it.

Reducing a length – the first method

The same technique can be used to reduce the length of a workpiece. In general, to do this, the toolpost is rotated through 90º-6º. This can lead to the cutting edge being in the wrong place.

fig

Reducing a length – second method

fig

Reducing a length – third method

fig
