Milling – workholding – non-rotating chucks

A chuck as used on a lathe can be a useful way of holding a workpiece when it is necessary to machine the end of it.

A four jaw chuck is useful for square and rectangular workpieces. A three jaw chuck is useful for round workpieces



Non-rotating three jaw chuck

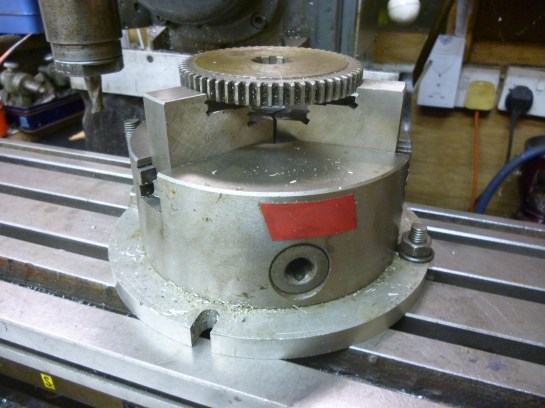

1072 non-rotating chuck

1072 non-rotating chuck

This is the three jaw chuck mounted on a plate as used on the rotary table.

It is useful where there is more than one part to be machined since all parts after the first will be aligned automatically.



Non-rotating four jaw chuck

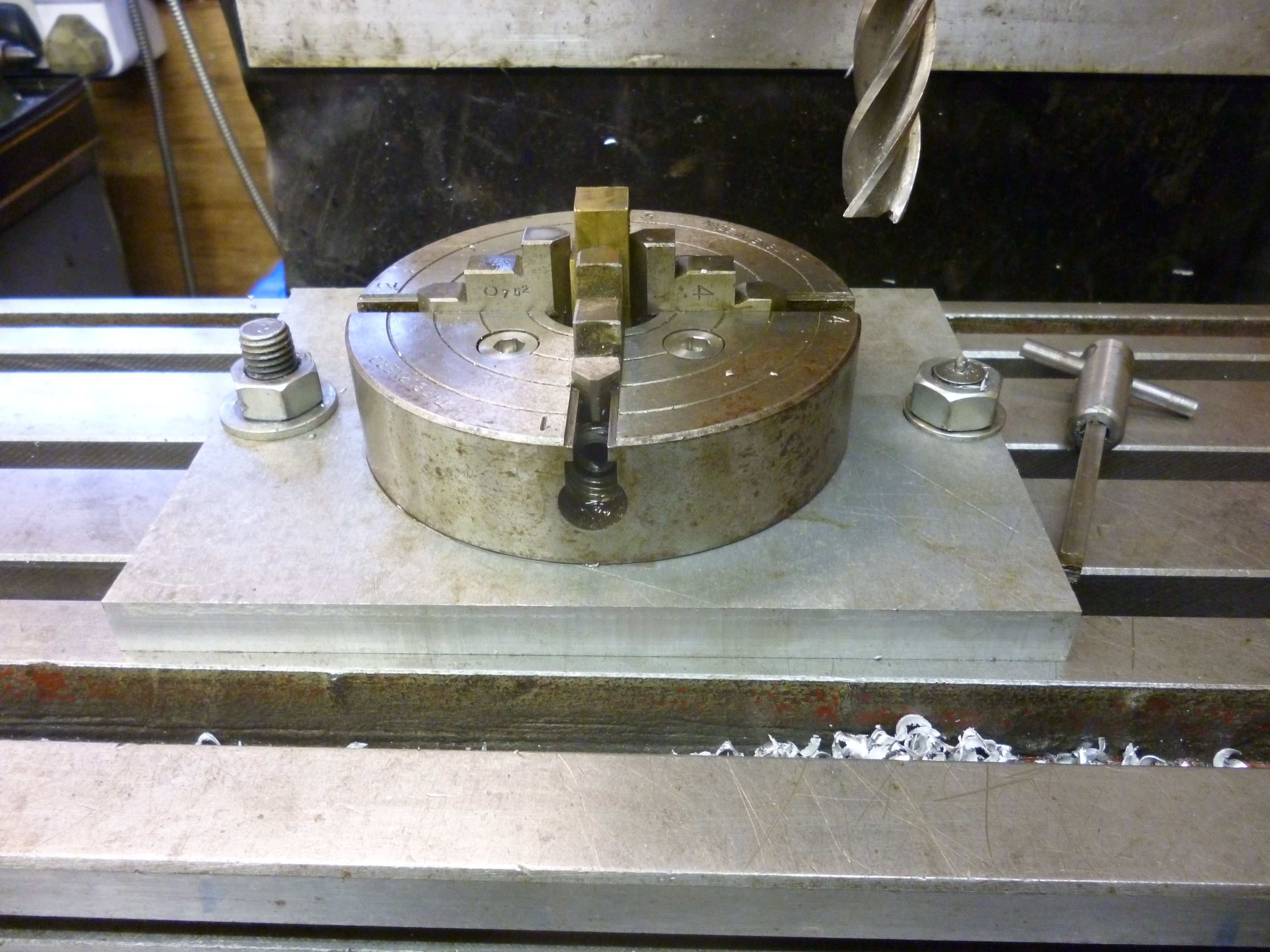

735 small four jaw chuck fixture

735 small four jaw chuck fixture

This device was found to be too low down so that doing up the jaws was too difficult.

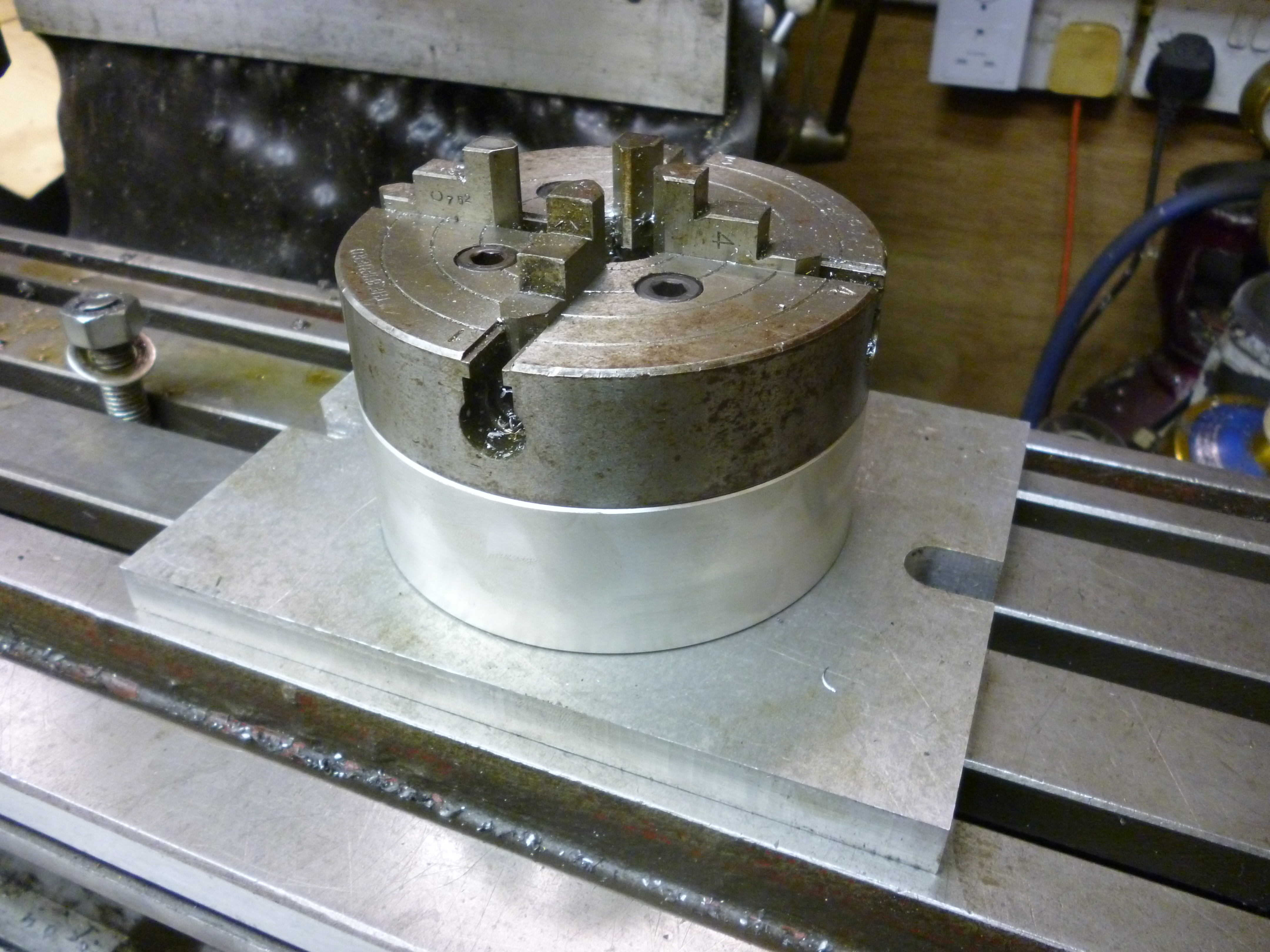

4470 four jaw chuck fixture

4470 four jaw chuck fixture

This version was much easier to us.

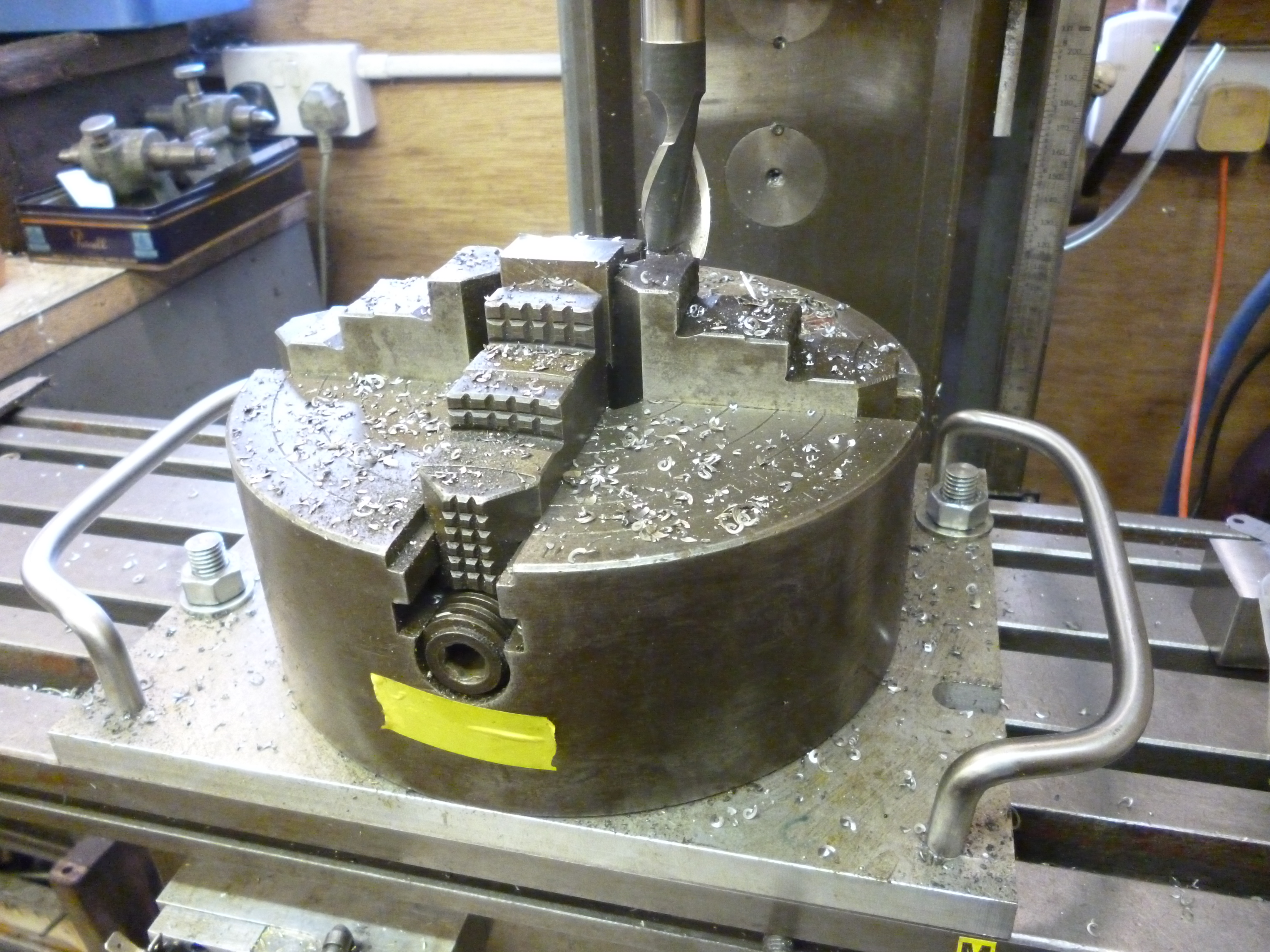

535 four jaw chuck fixture 4

535 four jaw chuck fixture 4

This larger size is even more useful but due to the weight it needed handles to be able to lift is easily.



Aligning the four jaw chuck fixture

510 aligning four jaw chuck

510 aligning four jaw chuck
