Flexible beam coupler

A flexible beam coupler is a type of universal joint. It can cope with the two shafts being at a very slight angle to each other  and it also allows for them to be slightly offset to each other.

The coupler is basically a tube. At the ends the “tube” is some form of coupling to allow two shafts to be fitted. In between the body of the tube is cut to form a helix. If the angle of the helix is very high then the thickness of the helical part becomes thin enough to be slightly flexible.

It could be made with one helical cut but having more than one helix interleaved provides higher torque capability and reduces windup. Also, by having two sets of helical slots at the ends of the middle of the coupler improves the ability to cope with misalignment.

460 flexible coupler

460 flexible coupler

Fig.  Flexible beam coupler 460

The workpiece is held in a chuck on a dividing head. Since the helix is formed by the table being driven along as the workpiece rotates a dividing head with an auxiliary input is needed.

The vertical head is tilted to give the necessary helix angle. The cutter is a slitting saw held on a stub arbor.

The workpiece is solid at this stage. After the helices have been cut it is drilled and reamed for the size of shaft the coupler has to take.

This only works because the component being made is right at the end of the workpiece. This is not supported so the vertical head can be tilted at any angle.

The milling table does not rise enough for the axis of the dividing head to be near the axis of the vertical head when it is horizontal. It is mounted on risers.

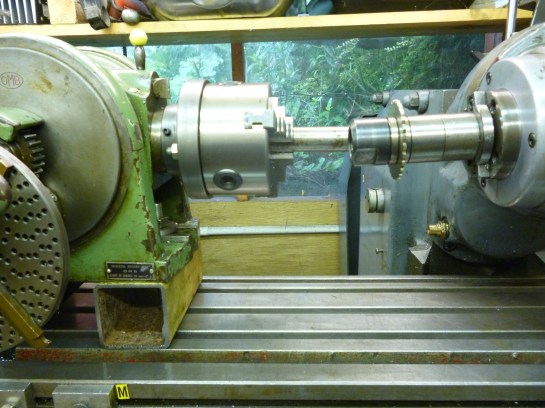

Use of raising "blocks" - 611

Use of raising “blocks” – 611

Fig.  cutting a flexible beam coupler 611

The helix angle is around 95°. This means the gearing is around 1:1. But if the auxiliary shaft is driven there is a reduction of 40:1 between the worm and wormwheel. Not only is this a high ratio but it is the wrong way round – the leadscrew needs to turn the auxiliary input 40 times faster.

The only way to get the required ratio is to bypass the worm and wormwheel and drive the shaft of the dividing head directly.

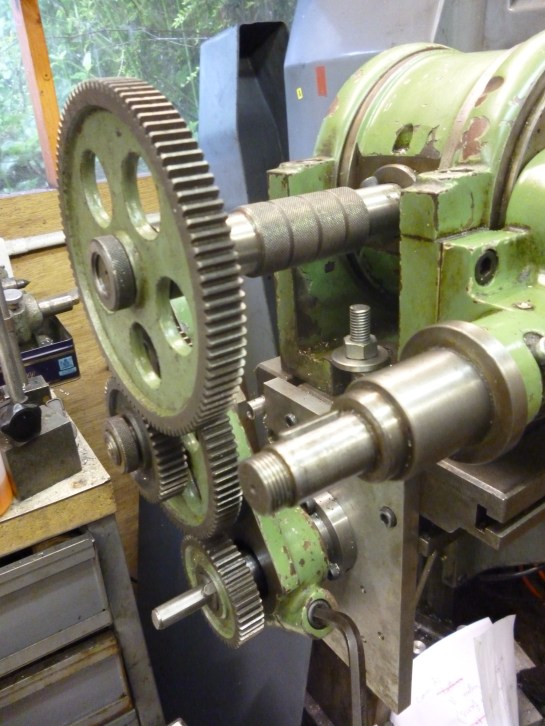

x604 driving the shaft directly

Fig.  Direct connection to the dividing head shaft 604

The gear train is on the quadrant arm of the dividing head but instead of fitting it the auxiliary input it if fixed to the leadscrew mounting. Because of the distance apart of the leadscrew and the shaft of the dividing head an extra gear is used to do this. This is the gear below the top one

In order to get the gears to fit an extension piece has also been used.

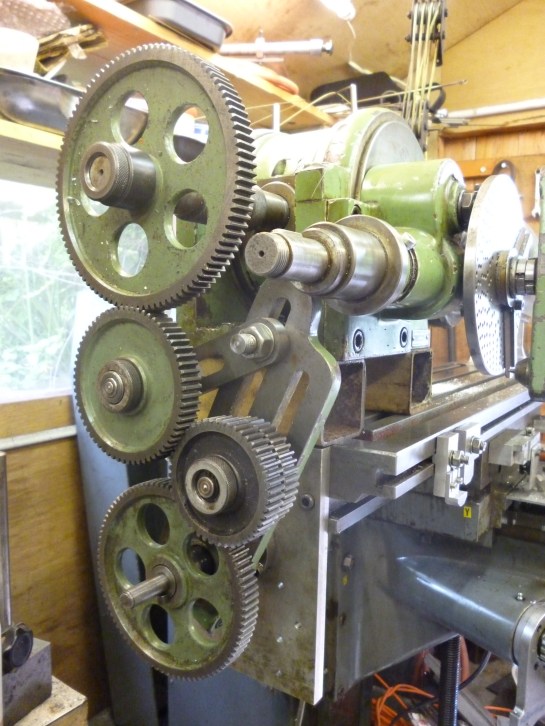

601 flexible beam coupler 2

601 flexible beam coupler 2

Fig.  Flexible beam coupler – gear train 601

It was not possible to use a very thin slitting saw. And only a surface cut is shown.


There is a serious problem using very thin slitting saw blades. This is that they are meant to be used flat. But a cut in a helix is not flat. If a very thin one is used it will try to follow the helix. A thicker one will cut the helix so a flat disc can go through it. A thinner one might do better if it is fitted with keepers.


  1. Sachin said:


    Thanks for information given making of Flexible Coupling.

    We want to manufacture these couplings..

    Can you provide us detailed information, how to setup machine for manufacturing these couplings.


    Sachin Gupta

    • I have gone through this page and made some corrections and added a photo.
      I think it includes everything I know about making flexible beam couplers.
      If you have any particular points let me know.

      john f
