Making a cross drilling jig for use on the lathe

The use of this is explained elsewhere

This consists of a taper to fit the taper in the tailstock of the lathe. This is fitted with a part that has a V-shape groove in it. The idea is that, if a round bar is placed in the groove its center line intersects the axis of the tailstock and, hopefully, that of the spindle. If a drill is held in the chuck then this will drill a hole through the workpiece held in this cross drilling jig

A taper needs to be made to fit the tailstock. This is covered under – lathe making tapers.  Alternatively a roughly made taper can be made. This is then Araldited into a suitable sleeve.

fig taper with end to take round part

This is made so that a round flat piece is fitted to the wide end.



There seems to be only one way of holding a taper. That is to fit in into a tapered socket. The solution here is to use a tapersocket to parallel shank adpater.

This can then be held in a chuck or in a V-block with the axis of the adapter vertical.

All that matters is that the adapter is centered accurately. The adapter is centered with the spindle using the dti on an arm device.

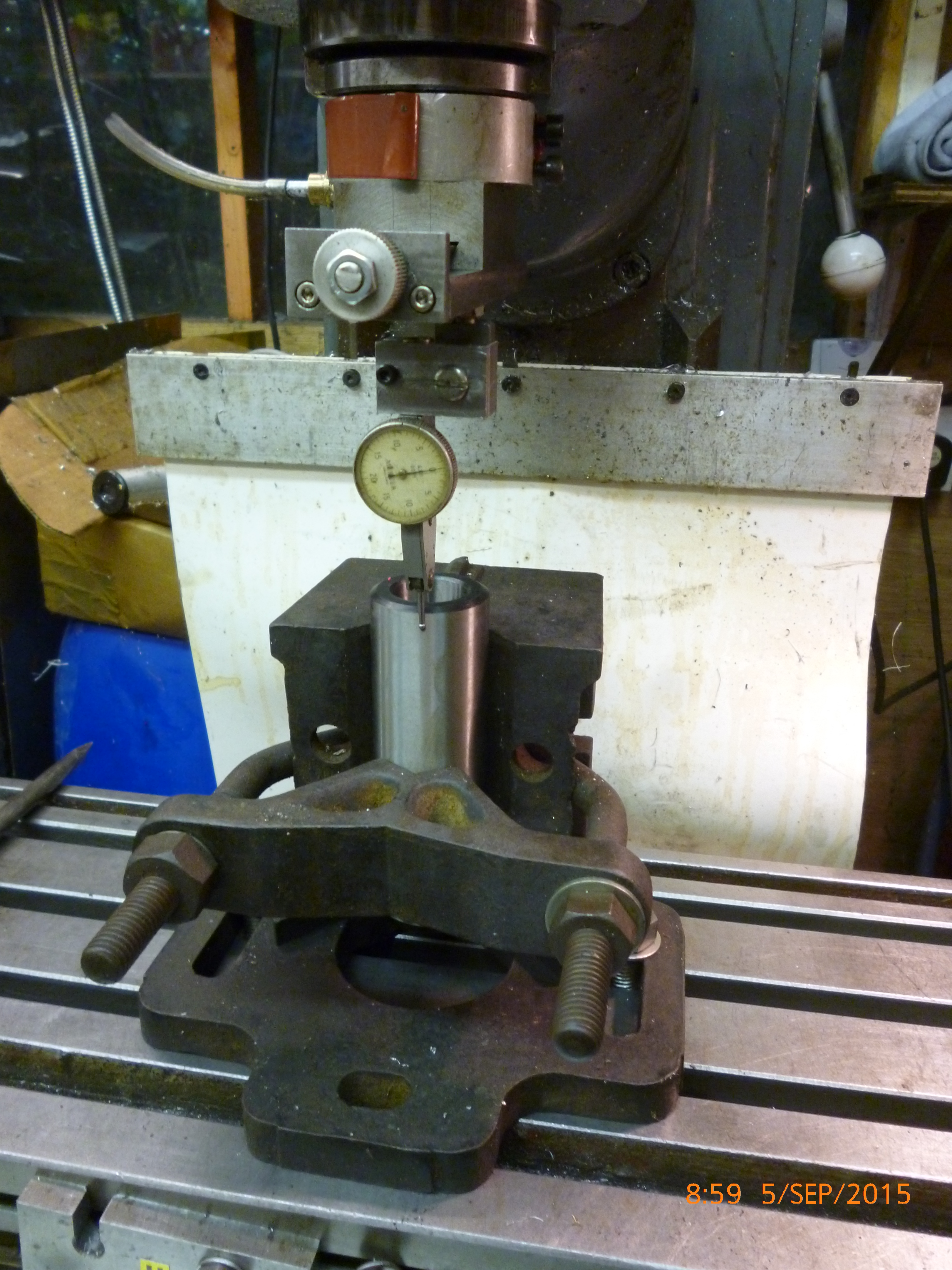

3151 aligning tapered socket

3151 aligning tapered socket

fig centering the adapter

Having done this the milling table is locked in the y direction.

The jig is fitted to the adapter. It is gently hammered in so as to stop any risk of it rotating.

What is needed now is a V cut in the round part of the jig. On a vertical mill it is unusual to get a cutter that will do this directly.

What is done here is to cut a very narrow slot done the middle. A V is cut into this using a slot mill that has been ground to form a V-shape but on only one flute. The angle of this is not critical. This means it will cut both sides and they will be symmetrical with the spindle and so also symmetrical with the axis of the taper.

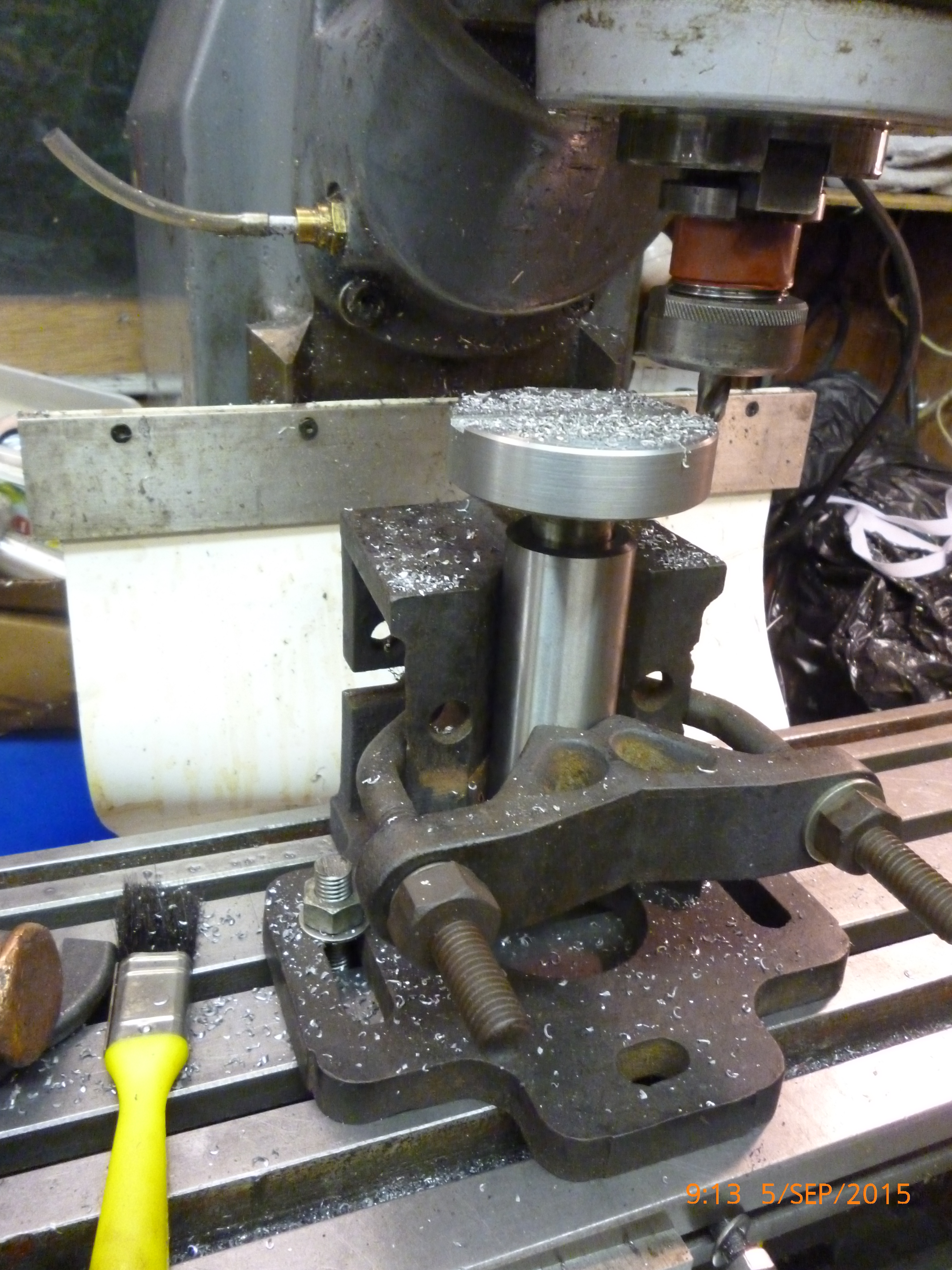

3152 making cross drilling jid - machining v slot

3152 making cross drilling jid – machining v slot

fig machining the V

Some holes are drilled so clamps can be fitted to hold the workpiece in place for center drilling.

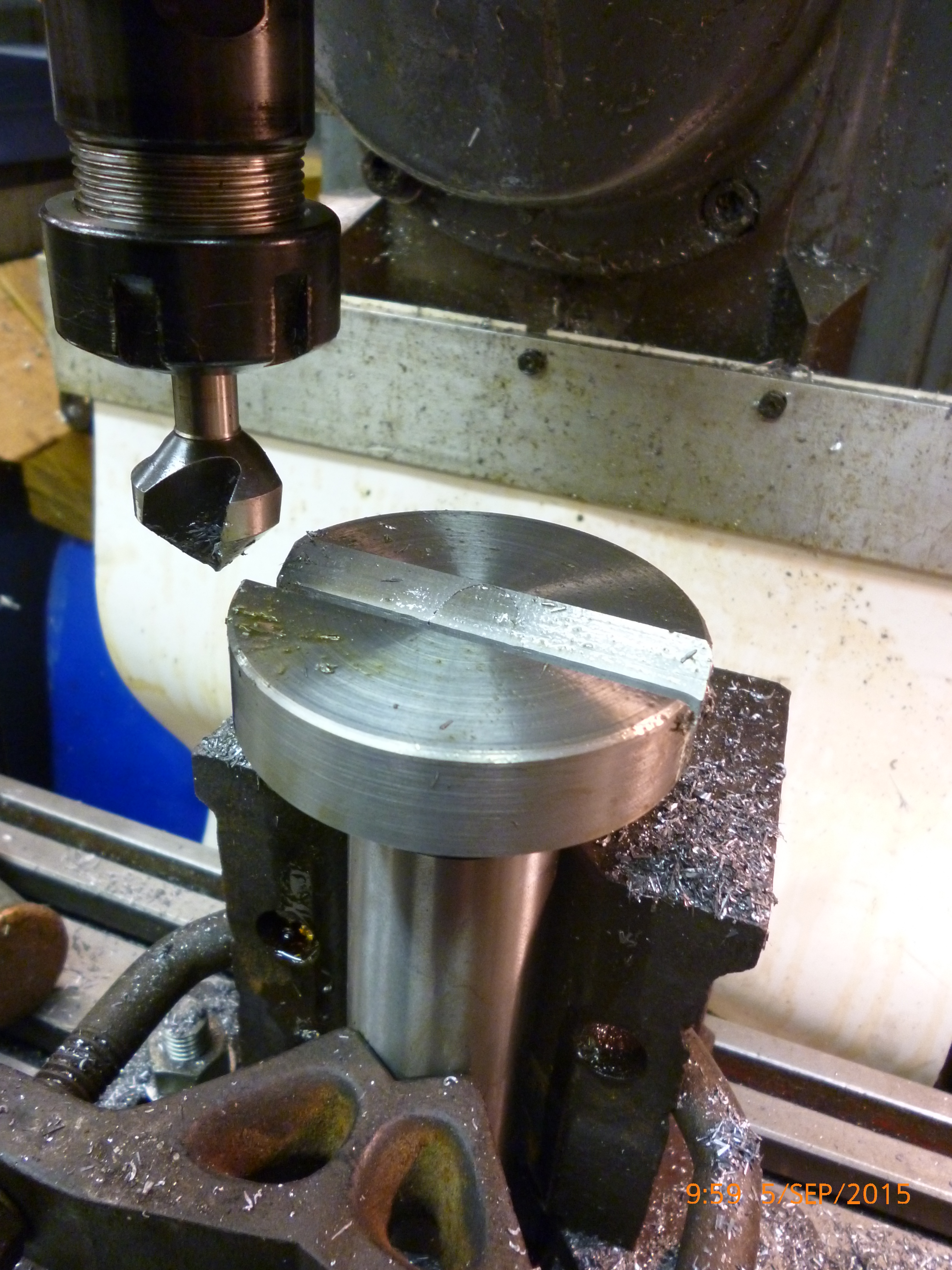

3153 cross drilling jig - finished V-slot

3153 cross drilling jig – finished V-slot

fig finished jig

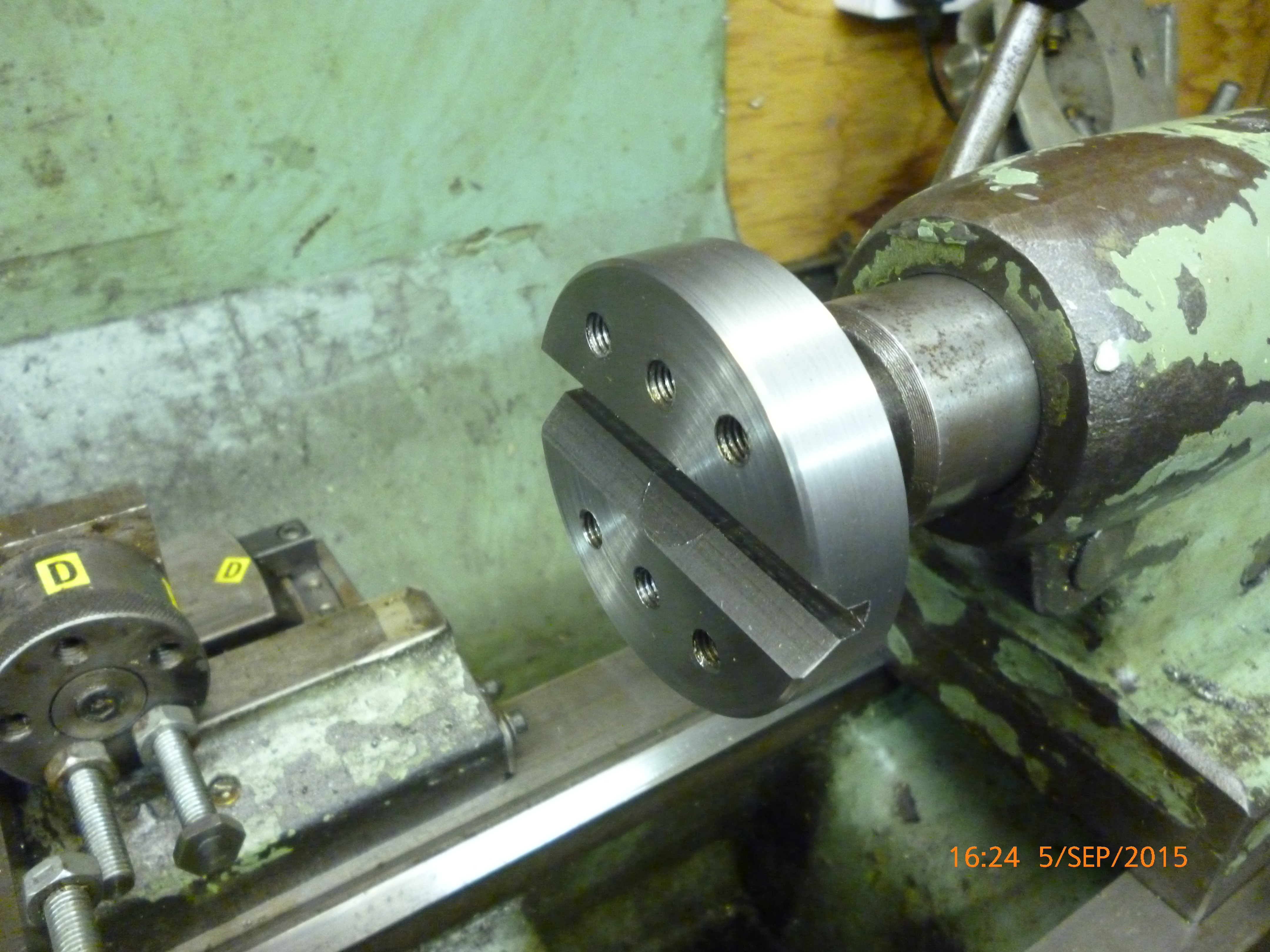

3154 cross drilling jig - finished jig fitted to tailstock

3154 cross drilling jig – finished jig fitted to tailstock

fig jig in use on the lathe

The holes on the face of the jig are for clamping the workpiece. The easiest way to do this is by means of a clamp across the workpiece.
